Overview

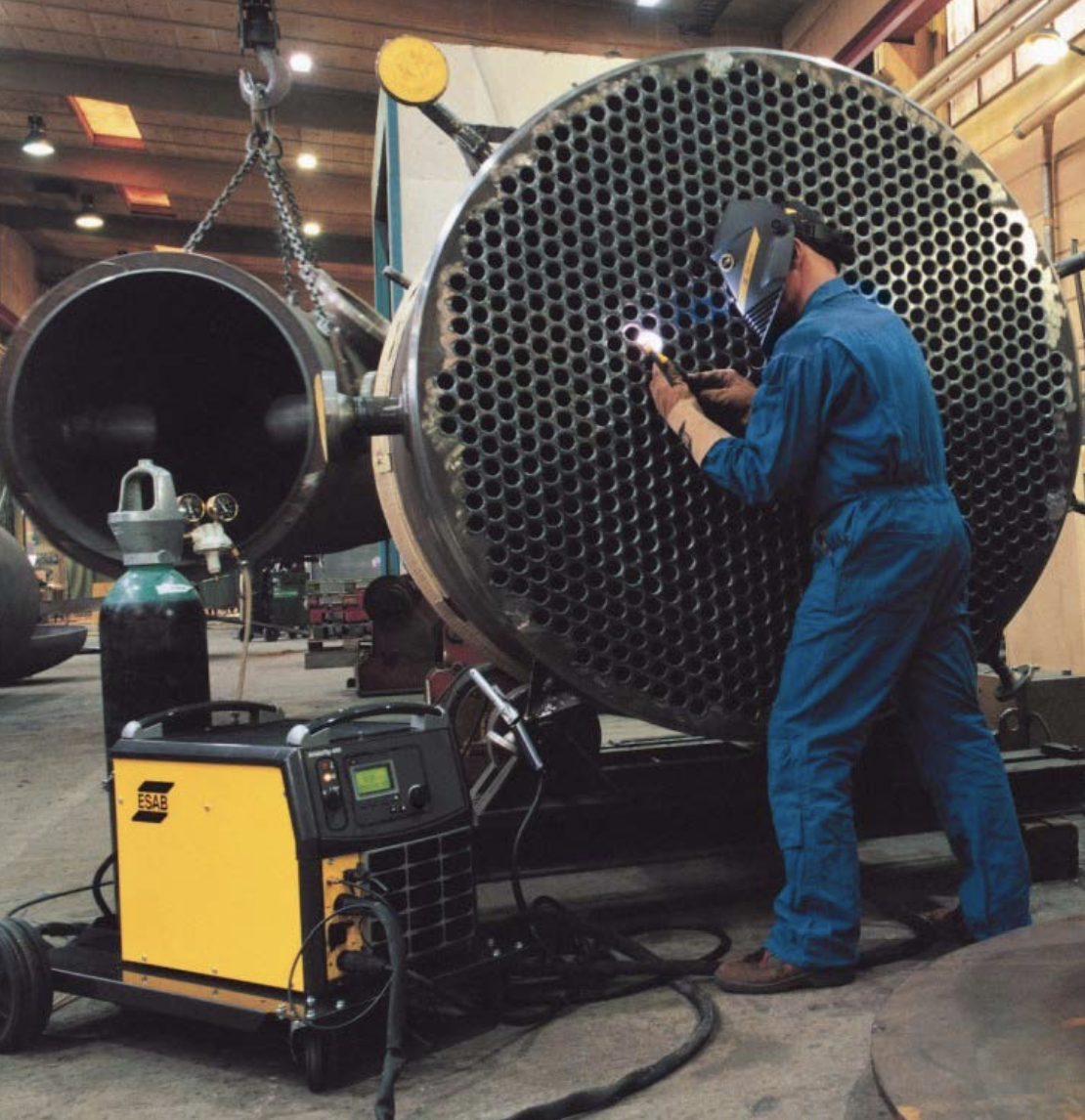

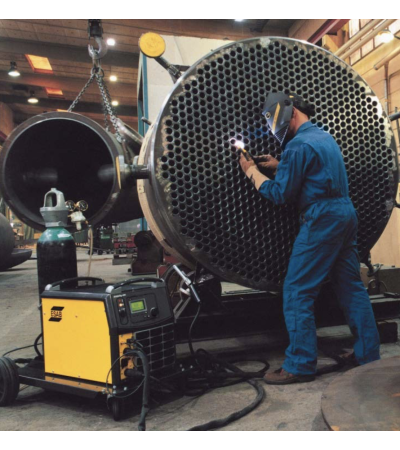

Aristo® Tig 4000i is a ideal partner when it comes to efficient production indoors or outdoors, installation on site or all type of repair & maintenance welding.
The power source is a compact and sturdy piece of equipment with a chassis made of extruded aluminium sections: Alutech™. This is a robust material that withstands rough treatment.
The power source is based on inverter IGBT technology that provides reliable equipment with outstanding welding characteristics.
The communications and control CAN-bus system means less cables, which in turn increases operational reliability.
Technical data
Aristo® Tig 4000i | |
Mains Voltage, V/Hz | 3x400, 50/60 |
Fuse, anti-surge, A | 20 |
Mains cable, mm2 | 4x4 |
Setting range, A | 4-400 |
Permitted load, 40oC | |
at 35% duty cycle TIG, A/V | 400/26 |
at 60% duty cycle TIG, A/V | 320/23 |
at 100% duty cycle TIG, A/V | 250/20 |
Open circuit voltage, U0 max | |
Without VRD function | 78-90 V |
MMA VRD function deactivated | 58 V |
VRD function activated | <35 V |
Energy save mode, W | 60 |
Apparant power at max, kVA | 18.6 |
Power factor at maximum current | 0.9 |
Efficiency at maximum current, % | 86 |
Dimensions l x w x h, mm | 625 x 394 x 496 |
Enclosure class | IP 23 |
Insulation class | H |
Operating temperature | -10 to +40°C |
Weight, kg | 61.5 |
incl. Water cooling unit | 81.5 |
Application class | S |
Standards | IEC/EN 60974-1-2-3-10 |
Highlights
Documents
ORDERING INFOMATION
You can purchase in the following ways:
- Buy online by filling out the form below. Our staff will contact you as soon as possible after receiving the information
- Make a direct call to the headquarters of the Company +84 28 39301261/39301262 during business hours from 8:00 AM to 5:00 PM Monday through Friday and from 8:00 AM to 12:00 AM on Saturdays.
Weekly except on Sundays and public holidays
- Directly to the headquarters of MPC 61A Tu Xuong, Ward 7, District 3, Ho Chi Minh City. HCM
Our staff is always available to advise and assist you choose the right product.
